Repair Asus Z00UD / ZD551KL Matot 9008



Brand     : asus
ProdName  : WW_Z00T
ProdModel : ASUS_Z00TD
Device    : Z00T
AndroidVer: 5.0.2
Manufact. : asus
QLMxCPU   : MSM8916

DevInfo : MSM8916__asus__asus__ANDR_v5.0.2__ASUS_Z00TD__Z00T__WW_Z00T
Detek di UFI ma CM2 Z00UD = Z00T /Z00TD

Fix Asus Z00UD matot via 9008 bukan Fastboot Mode

Bahan :

  • via EDL 9008 / CM2
  1.       Download Rom Flash Via UFI Asus Z00UD / ZD551KL HS-9008  atau Download Disini
  2.       Download Rom Flash Via CM2 Asus Z00UD / ZD551KL HS-9008  atau Download Disini
  3.       Tool tested via UFI sama CM2
  4.       Konfirmasi pass sms/wa only 0822-1163-1565 (nomor ini hanya buat konfirmasi, BUKAN     YANG DI ISI) , Mahar pulsa 20k

Cara Kerja

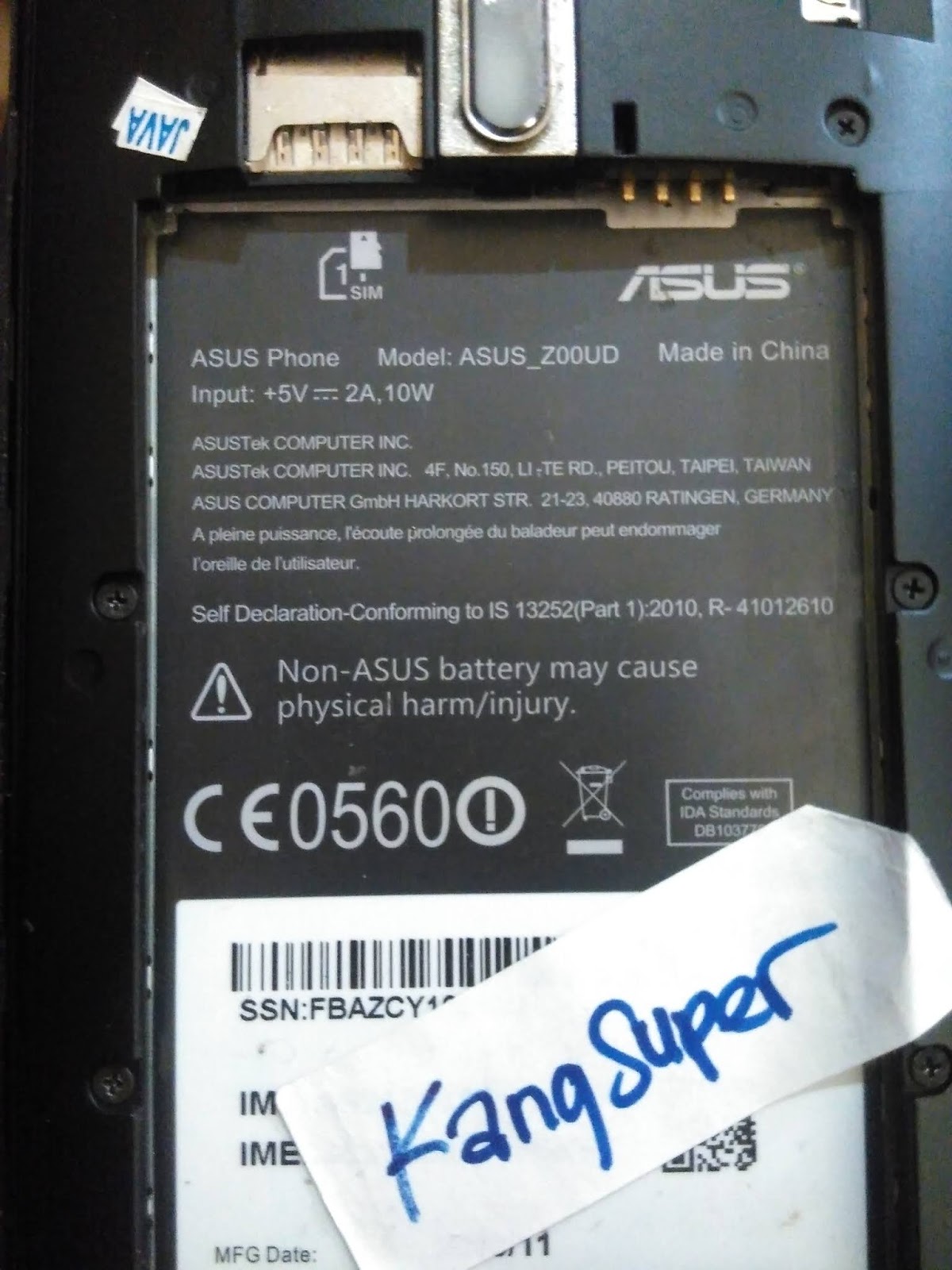

1. Cara EDL/9008 Silahkan testpoint Asus Z00UD anda, letak test point seperti gambar diatas, baterai tetap dipasang
2. Flash via UFI atau CM2 dongle
3. Buat ROM UFI karena tanpa userdata, bila belum bisa masuk menu silahkan reset abis flash

Penampakan ROM 9008 asus Z00UD

Log Read Firmware ASUS Z00UD via UFI
Scanning for Qualcomm HS-USB QDLoader 9008 device...
Download Port: Qualcomm HS-USB QDLoader 9008 (COM3)
 Connection status: EHCI:HUB:HUB:USB 2.0 High-Speed
 USB Driver: [Qualcomm Incorporated] qcusbser, version: 2.1.2.2, date: 3-25-2016
Initializing...

platform: msm8916, cpu abi: arm64-v8a
manufacturer: asus
board: msm8916, name: WW_Z00T
brand: asus, model: ASUS_Z00TD
build id: LRX22G, version: 5.0.2 Lollipop (LRX22G.WW_user_1.15.40.1238_20160305)
build description: Z00T-user 5.0.2 LRX22G WW_user_1.15.40.1238_20160305 release-keys

Reading gpt_main0 at 0x00000000-0x000043FF size: 17 KiB...  Done.
Reading sbl1 at 0x00004400-0x001443FF size: 1.25 MiB...  Done.
Reading sbl1bak at 0x00144400-0x002843FF size: 1.25 MiB...  Skipped
Reading rpm at 0x00284400-0x003043FF size: 512 KiB...  Done.
Reading rpmbak at 0x00304400-0x003843FF size: 512 KiB...  Skipped
Reading tz at 0x00384400-0x004043FF size: 512 KiB...  Done.
Reading tzbak at 0x00404400-0x004843FF size: 512 KiB...  Skipped
Reading hyp at 0x00484400-0x005043FF size: 512 KiB...  Done.
Reading hypbak at 0x00504400-0x005843FF size: 512 KiB...  Skipped
Reading DDR at 0x00584400-0x0058C3FF size: 32 KiB...  Done.
Reading ssd at 0x0058C400-0x0058E3FF size: 8 KiB...  Done.
Reading sec at 0x0058E400-0x005923FF size: 16 KiB...  Done.
Reading aboot at 0x00592400-0x00A923FF size: 5 MiB...  Done.
Reading abootbak at 0x01000000-0x014FFFFF size: 5 MiB...  Skipped
Reading splash at 0x01500000-0x019FFFFF size: 5 MiB...  Done.
Reading devinfo at 0x01A00000-0x01AFFFFF size: 1 MiB...  Done.
Reading fsg at 0x02000000-0x0217FFFF size: 1.50 MiB...  Done.
Reading fsc at 0x02180000-0x021803FF size: 1 KiB...  Done.
Reading modemst1 at 0x02180400-0x023003FF size: 1.50 MiB...  Done.
Reading modemst2 at 0x02300400-0x024803FF size: 1.50 MiB...  Done.
Reading factory at 0x02480400-0x02E803FF size: 10 MiB...  Done.
Reading factorybak at 0x02E80400-0x038803FF size: 10 MiB...  Done.
Reading asuskey at 0x03880400-0x039803FF size: 1 MiB...  Done.
Reading asuskey2 at 0x03980400-0x03A803FF size: 1 MiB...  Done.
Reading asuskey3 at 0x03A80400-0x03B803FF size: 1 MiB...  Done.
Reading asuskey4 at 0x03B80400-0x03C803FF size: 1 MiB...  Done.
Reading asuskey5 at 0x03C80400-0x03D803FF size: 1 MiB...  Done.
Reading asusgpt at 0x03D80400-0x03E803FF size: 1 MiB...  Done.
Reading asusgpt1 at 0x03E80400-0x03F803FF size: 1 MiB...  Done.
Reading asusgpt2 at 0x03F80400-0x040803FF size: 1 MiB...  Done.
Reading misc at 0x04080400-0x041803FF size: 1 MiB...  Done.
Reading keystore at 0x04180400-0x042003FF size: 512 KiB...  Done.
Reading config at 0x04200400-0x042083FF size: 32 KiB...  Done.
Reading asdf at 0x04208400-0x062083FF size: 32 MiB...  Done.
Reading abootdebug at 0x06208400-0x064083FF size: 2 MiB...  Done.
Reading persistent at 0x06408400-0x065083FF size: 1 MiB...  Done.
Reading oem at 0x07000000-0x08FFFFFF size: 32 MiB...  Done.
Reading boot at 0x09000000-0x0AFFFFFF size: 32 MiB...  Done.
Reading recovery at 0x0B000000-0x0CFFFFFF size: 32 MiB...  Done.
Reading persist at 0x0D000000-0x0EFFFFFF size: 32 MiB...  Done.
Reading asusfw at 0x0F000000-0x0FFFFFFF size: 16 MiB...  Done.
Reading modem at 0x10000000-0x13FFFFFF size: 64 MiB...  Done.
Reading ADF at 0x14000000-0x15FFFFFF size: 32 MiB...  Done.
Reading APD at 0x16000000-0x22FFFFFF size: 208 MiB...  Done.
Reading cache at 0x23000000-0x24FFFFFF size: 32 MiB...  Done.
Reading system at 0x25000000-0xE4FFFFFF size: 3 GiB...  Done.
Files saved to \\%BACKUPS%\ASUS\ASUS_Z00UD(ZD551KL)\Z00T-user%205.0.2%20LRX22G%20WW_user_1.15.40.1238_20160305%20release-keys\




Log Flash Asus Z00UD mode 9008 via CM2

1. Power Off Phone , Remove battery , Insert back
2. PRESS and HOLD BOTH VOLUME KEYS!
3. Insert USB cable. In some cases require use EDL cable or TP to force EDL mode!

Wait for phone...
Device Found!
Initialize ...
Handshake passed!
ID_BLOCK_I : SnapDragon 610 [MSM8936]
ID_BLOCK_S : 0563791F
ID_BLOCK_E : 11112222
ID_BLOCK_L : 9804CD17002B1797819FA1BA47D9326D
ID_BLOCK_L : 58A3C03C622893406757A59F4E44AF42
Pickup loader from firmware package
Loader Sent! Initializing ...
Running FireHose on BBID : MSM8936 , FLASH : eMMC , mVER : 1
MemInfo : 0x0003 / 0x0200 / 0x0000000747C00000 [ eMMC 32 GiB ]
ExtInfo : 0x00004000/00004000/00001000/00001000/00000200
Boot Ok!

Flash Chain : 48
Flashing now

Flashing : gpt_main0.bin
Flashing : sbl1.mbn
Flashing : sbl1.mbn
Flashing : rpm.mbn
Flashing : rpm.mbn
Flashing : tz.mbn
Flashing : tz.mbn
Flashing : hyp.mbn
Flashing : hyp.mbn
Flashing : sec.dat
Flashing : emmc_appsboot.mbn
Flashing : emmc_appsboot.mbn
Flashing : splash.img
Flashing : misc.img
Flashing : asdf.bin
Flashing : abootdebug.bin
Flashing : boot.img
Flashing : recovery.img
Flashing : persist.img
Flashing : NON-HLOS.bin
Flashing : cache.img
Flashing : system.img
Flashing : userdata.img
Flashing : gpt_backup0.bin
Wipe data ...

BootConfig set to 0x00

Flashing done!

Done!
Elapsed: 00:04:50

Reconnect Power/Cable!
